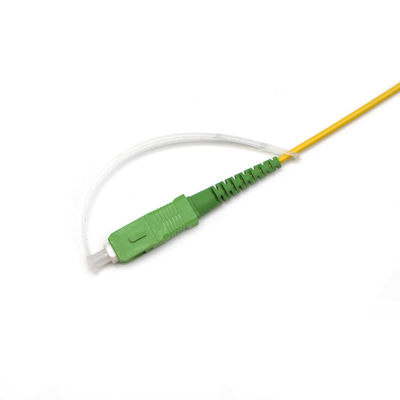

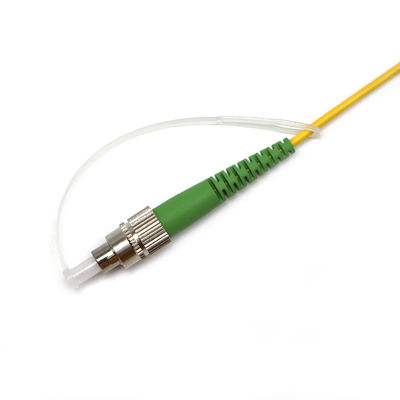

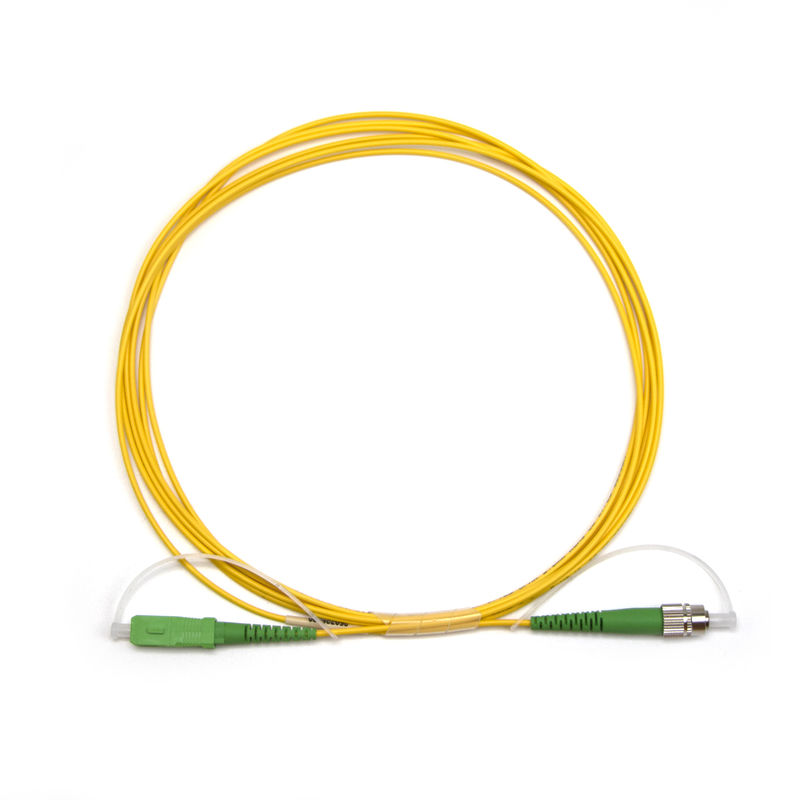

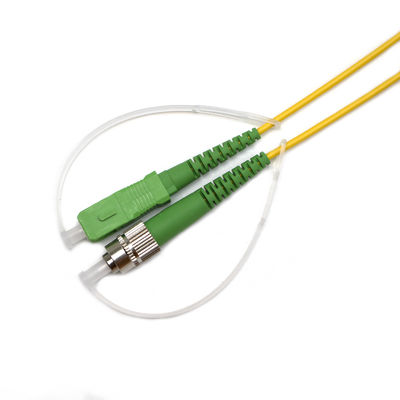

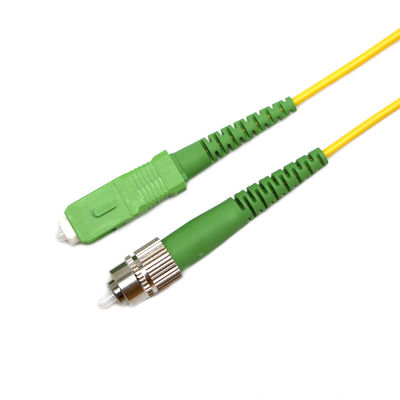

FC SC LC ST TEST Conventional Fiber Optic Patch Cord
Thông tin chi tiết sản phẩm:
| Place of Origin: | China |
| Hàng hiệu: | TTI |
| Chứng nhận: | CE/ROHS/ISO9001 |
| Model Number: | TEST |
Thanh toán:
| Minimum Order Quantity: | 1000 |
|---|---|

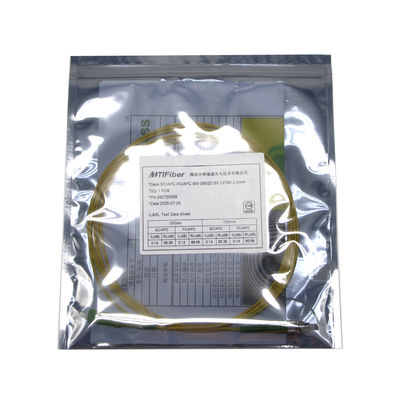

| Packaging Details: | Wooden Drum |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1KM/Drum or Other Package Lengths Customized |
|
Thông tin chi tiết |
|||
| Connection header type: | FC、SC、LC、ST | ||
|---|---|---|---|
| Làm nổi bật: | FC SC LC ST fiber optic patch cord,conventional fiber optic test cable,fiber optic patch cord with warranty |
||
Mô tả sản phẩm
Technical parameters
| Parameters | Unit | Numerical value | ||||||
| Connection header type | - | FC,SC,LC,ST | ||||||
| Central wavelength | nm | 1550 | 1310 | 1300 | 850 | |||
| Maximum insertion loss (23℃) | dB | Typical value 0.1 maximum 0.15 | Typical value 0.1 maximum 0.15 | 0.15Typical value 0.1 maximum 0.15 | Typical value 0.1 maximum 0.15 | |||
| Minimum callback loss (23 ° C) | PC | dB | ≥45 | |||||
| UPC | dB | ≥55 | ||||||
| APC | dB | ≥65 | ||||||
| Repeatability | dB | ≤0.1 | ||||||
| Interchangeability | dB | ≤0.2 | ||||||
| Axis alignment Angle tolerance | deg | ±0.3 | ||||||
| Plug the number | Next | ≥1000 | ||||||
| Operating temperature | ℃ | -20~+70 | ||||||
| Storage temperature | ℃ | -40~+85 | ||||||
